Edge Deck Fasteners

The magic is in the screw.

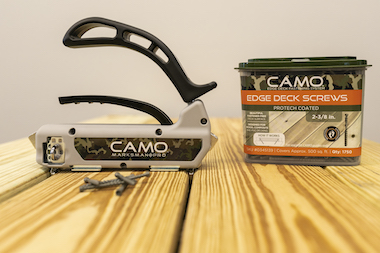

Hidden in the side of the board, CAMO® Edge Deck Fasteners create a beautiful, fastener-free deck surface. Easy to install using a Marksman tool, CAMO® Edge Deck Fasteners secure deck boards directly to the joist to reduce board movement, and they back out easily in the event a board needs to be replaced. No pre-drilling is required! And all CAMO® Fasteners come with a Limited Lifetime Warranty that guarantees against rust and corrosion for the life of the project.

SELECTING THE RIGHT EDGE FASTENER

Fasteners Specification

Proprietary Design – Patent Pending

A reverse rake tip removes deck material as it bores, allowing the screw to penetrate the board without splitting. A star drive offers more points of contact for better performance and reduces bit slippage and wear.

An aggressive lower thread pattern provides superior holding power while the reverse upper thread pulls the board tight to the joist and provides a clean, finished entry.
A unique trimhead design provides a less visible point of entry.

Choices for Corrosion Resistance/ACQ Compatibility

ProTech Coated –1500 hour salt spray.
316 Stainless Steel – ultimate in corrosion resistance; recommended for coastal environments.

When using Stainless Steel CAMO Edge Deck Screws with hardwood decking, pre-drilling is recommended.*

Lengths

1-7/8” For use with any nominal 5/4 deck board (3/4” – 1” board thickness) – ProTech and Stainless Steel.
2-3/8” For use with any nominal 2x deck board (1”-1-1/2” board thickness) – ProTech and Stainless Steel.

Tested

CAMO® Edge Deck Fasteners were independently tested and exceeded Uplift Resistance industry standards in all solid and grooved wood, composite, and PVC deck boards tested.

CAMO® Edge Deck Fasteners also exceeded Thermal Cycling industry standards in all solid wood, composite, and PVC deck boards tested.

Warranty

CAMO offers a Limited Lifetime Warranty that guarantees against rust and corrosion for the life of the project. Australian Warranty.

All CAMO Fasteners are ACQ-compatible in ProTech coated carbon steel and 316 Stainless Steel, and each fastener package includes CAMO Bits.

*Pre-Drill Option
