EdgeClip and EdgeXClip were developed with the contractor in mind. Contractors told us that they wanted clip installation in grooved decking to be fast, easy, versatile, and strong. EdgeClip and EdgeXClip deliver.
FAST AND EASY INSTALLATION

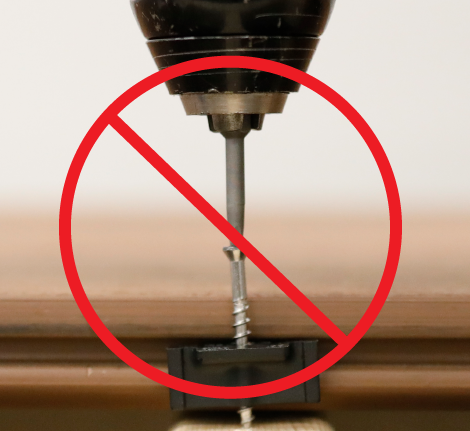

The old way to install clips required you to partially install each clip into the joist, push the grooved deck board in place without accidentally dislodging the clips, and then go back to the clips and complete the installation. Talk about a slow process that's not easy to do.
Your time is valuable—you've got better things to do than drill a clip twice. That's why we invented the EdgeClip and EdgeXClip.

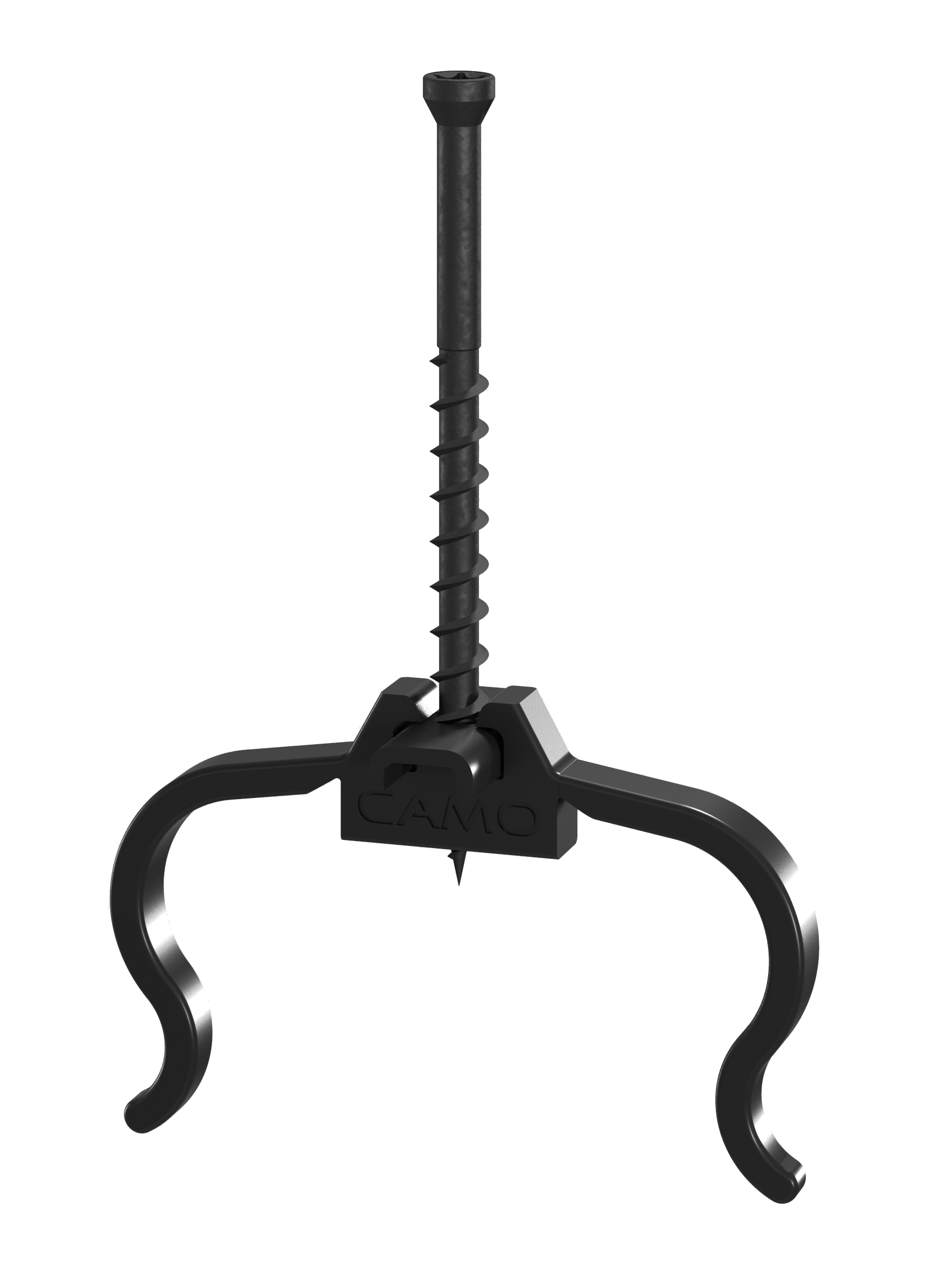

EdgeClips hug the joist and EdgeXClips hug the groove in the deck board so no partial installation is required.
Installing the EdgeClip is a one-handed job. Simply attach each clip to the joist, slide the board in place, then move to the next board. You can set multiple boards before driving the screws.

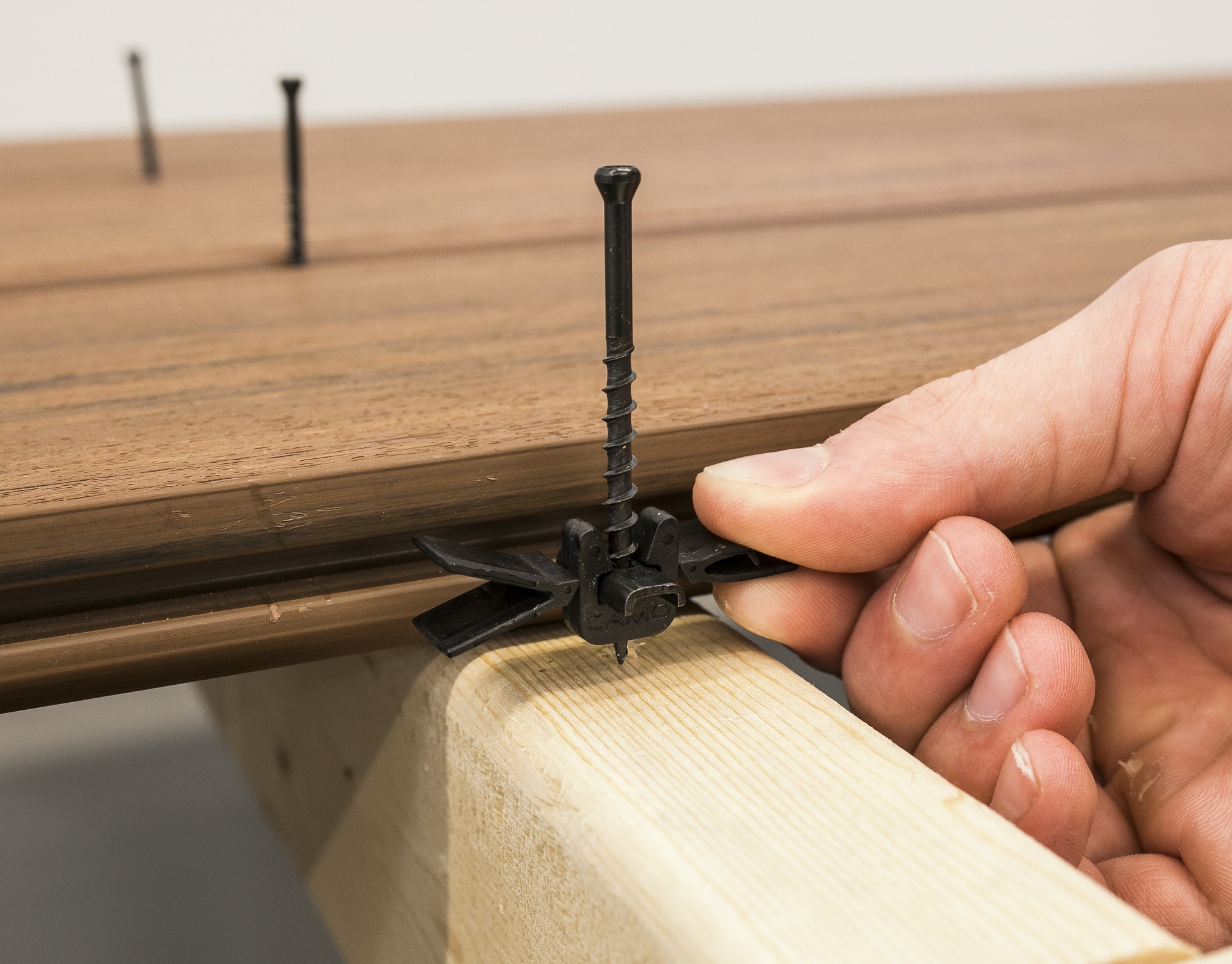

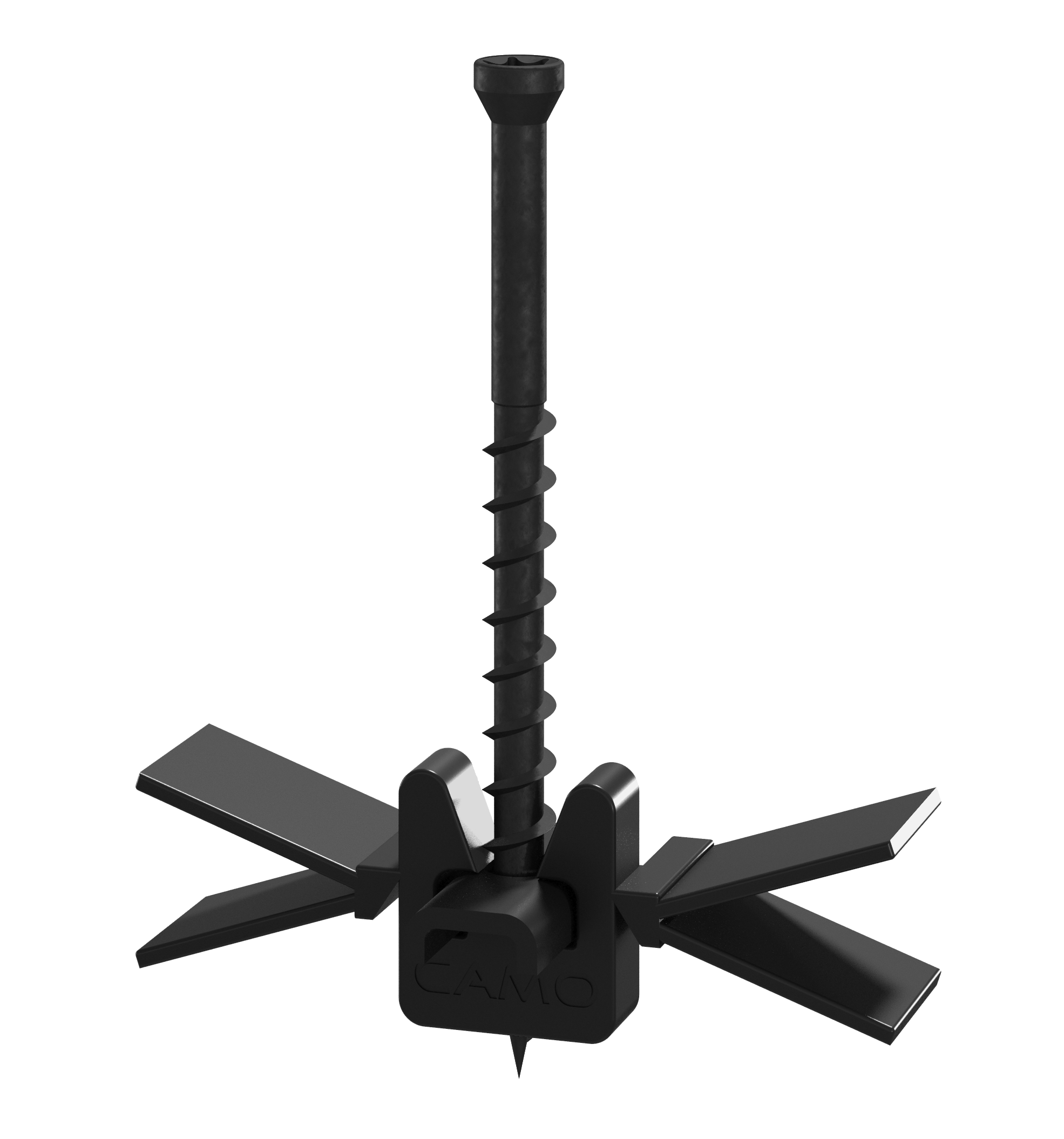

To install the EdgeXClip, pinch the wings and slide it into the groove. Angle the deck board in any direction over the joist. Like the EdgeClip, you can set multiple boards before driving.
Once all your EdgeClips or EdgeXClips are in place, use the Never-Miss™ Guide included in every pail to drive the screw. The Never-Miss Guide directs the driver bit perfectly on the screw head every time.

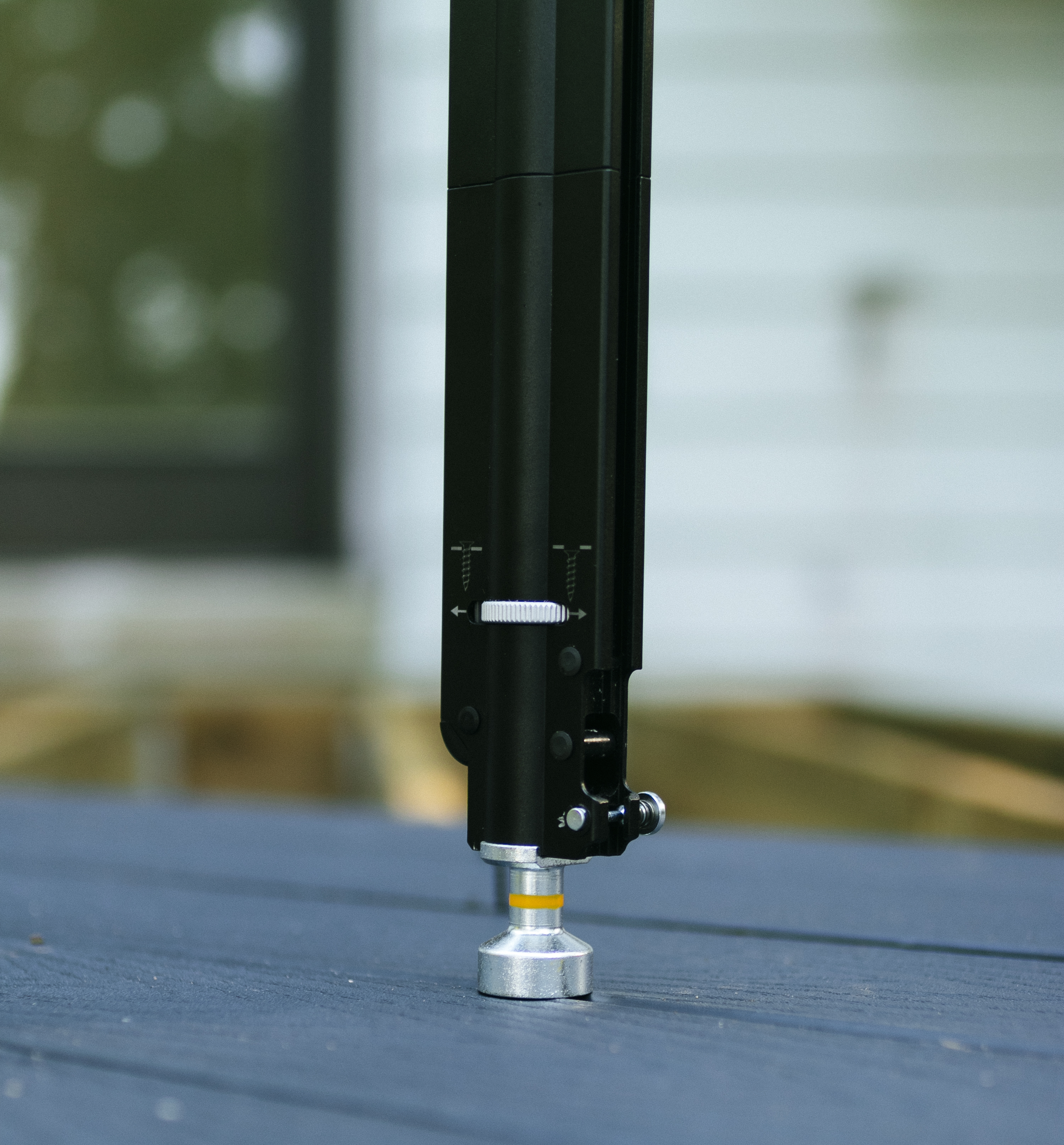

For CRAZY FAST installation, use the CAMO DRIVE™ stand-up tool with Clip Guide. This tool gets you off your knees and helps you build decks faster so you can move on to the next job.
No matter the grooved deck board material or desired decking pattern, EdgeClips and EdgeXClips will help you get the job done.
EdgeClip was designed for common 90° decking pattern

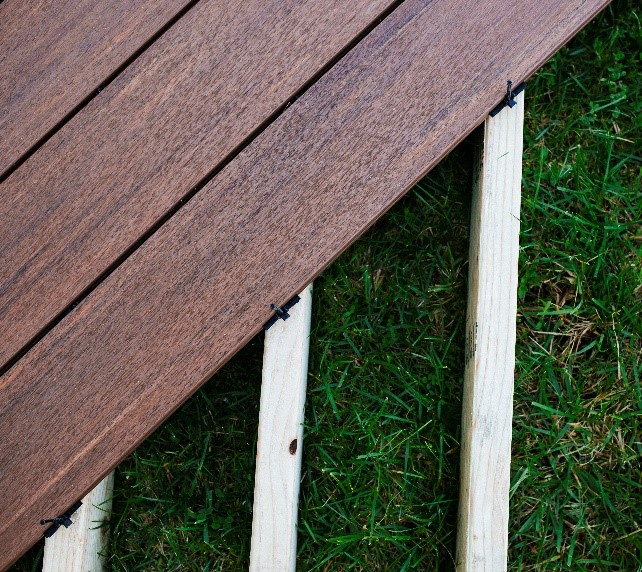

EdgeXClip was designed for any angle decking pattern
EdgeClips and EdgeXClips are the strongest on the market. An independent research firm compared their lateral strength with leading competitors' clips, and EdgeClips and EdgeXClips were up to 88% stronger. The secret to their strength? The 304 Stainless Steel gusset on the clips that bites into the groove when you fasten the 410 Stainless Steel screw.

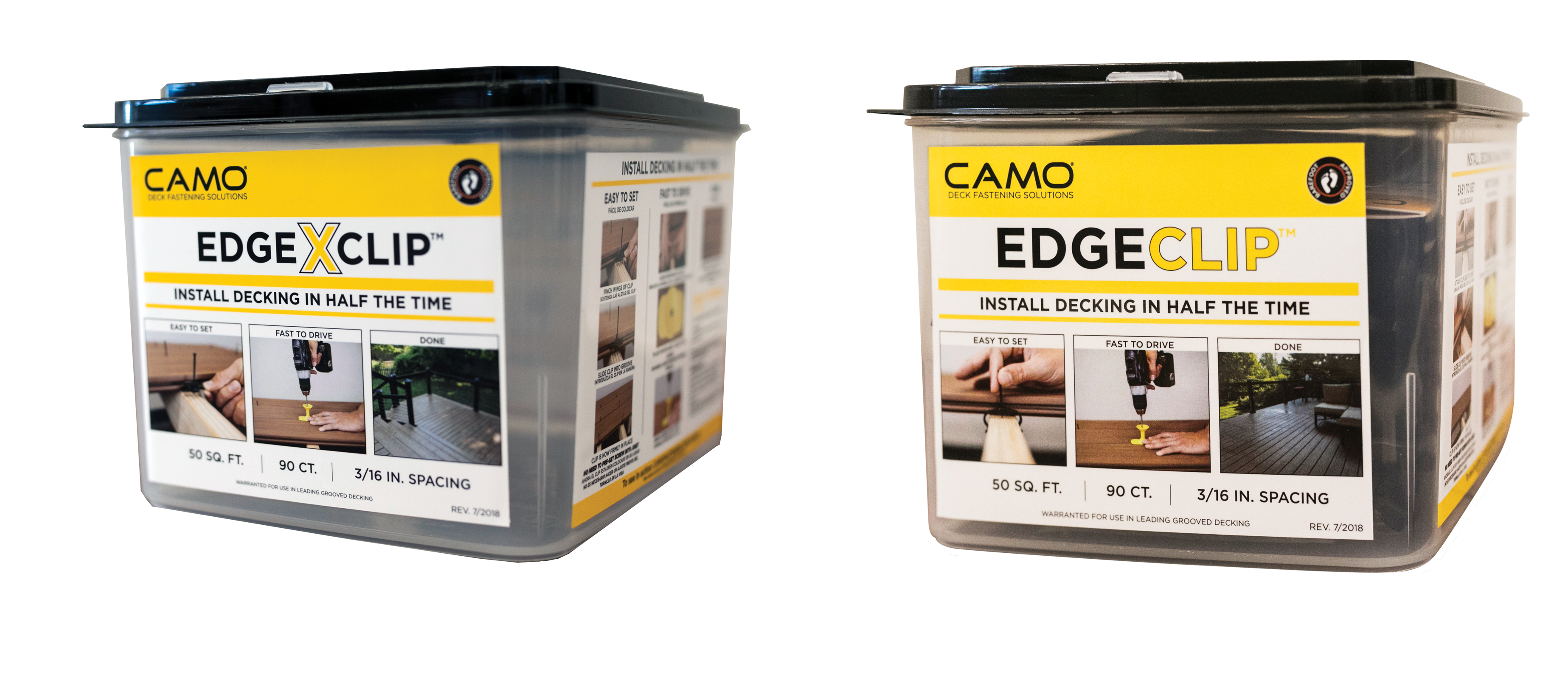

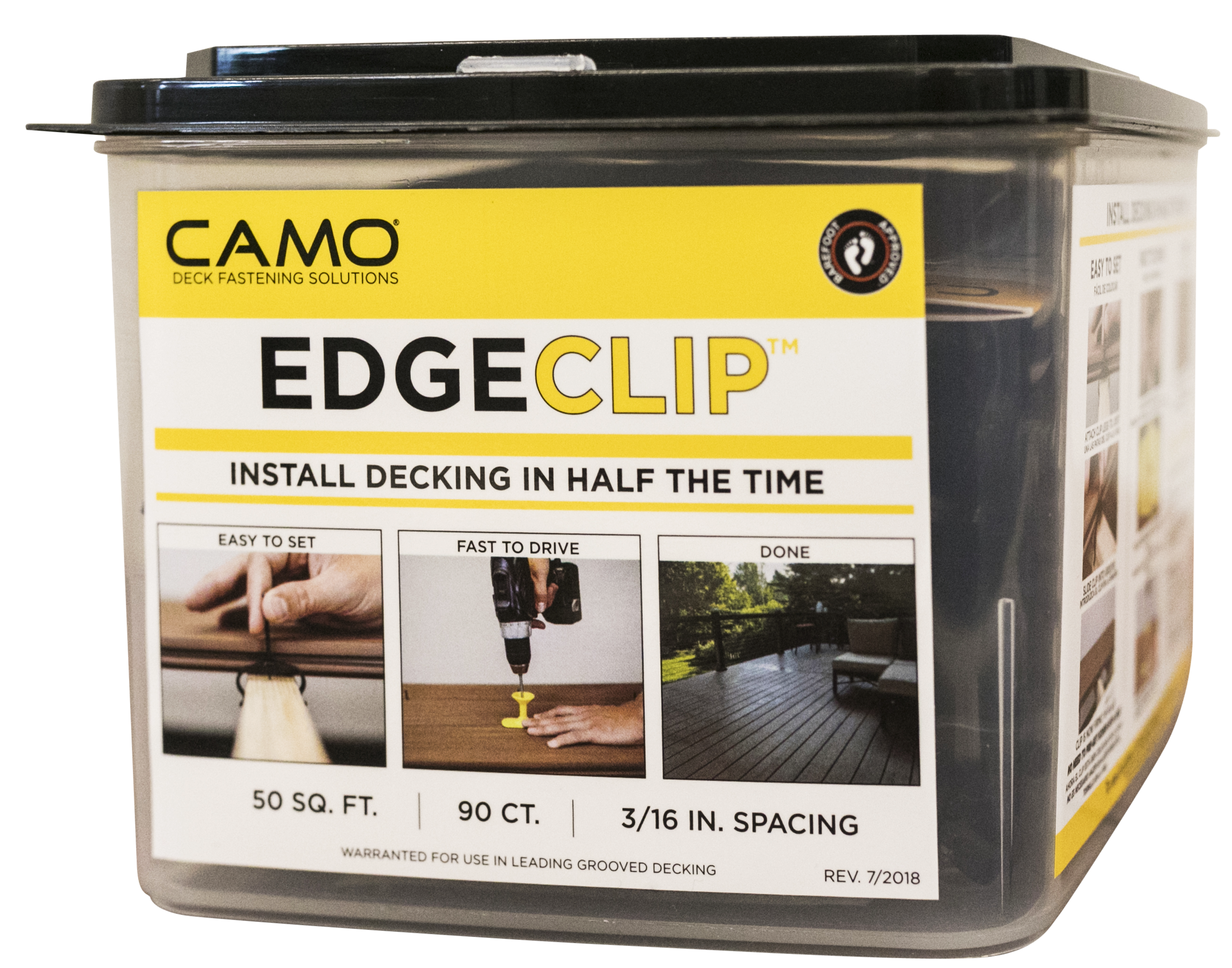

EdgeClips and EdgeXClips come in three pail sizes: 90 count (50 sq. ft.), 450 count (250 sq. ft.) and 900 count (500 sq. ft.)
THE FASTENER CALCULATOR
Check out our Fastener Calculator to help you determine how many clips you need to build your deck.
BEGIN ANY GROOVED DECKING INSTALLATION WITH NEW CAMO® STARTER CLIPS
The easy way to get a fastener-free deck surface from start to finish

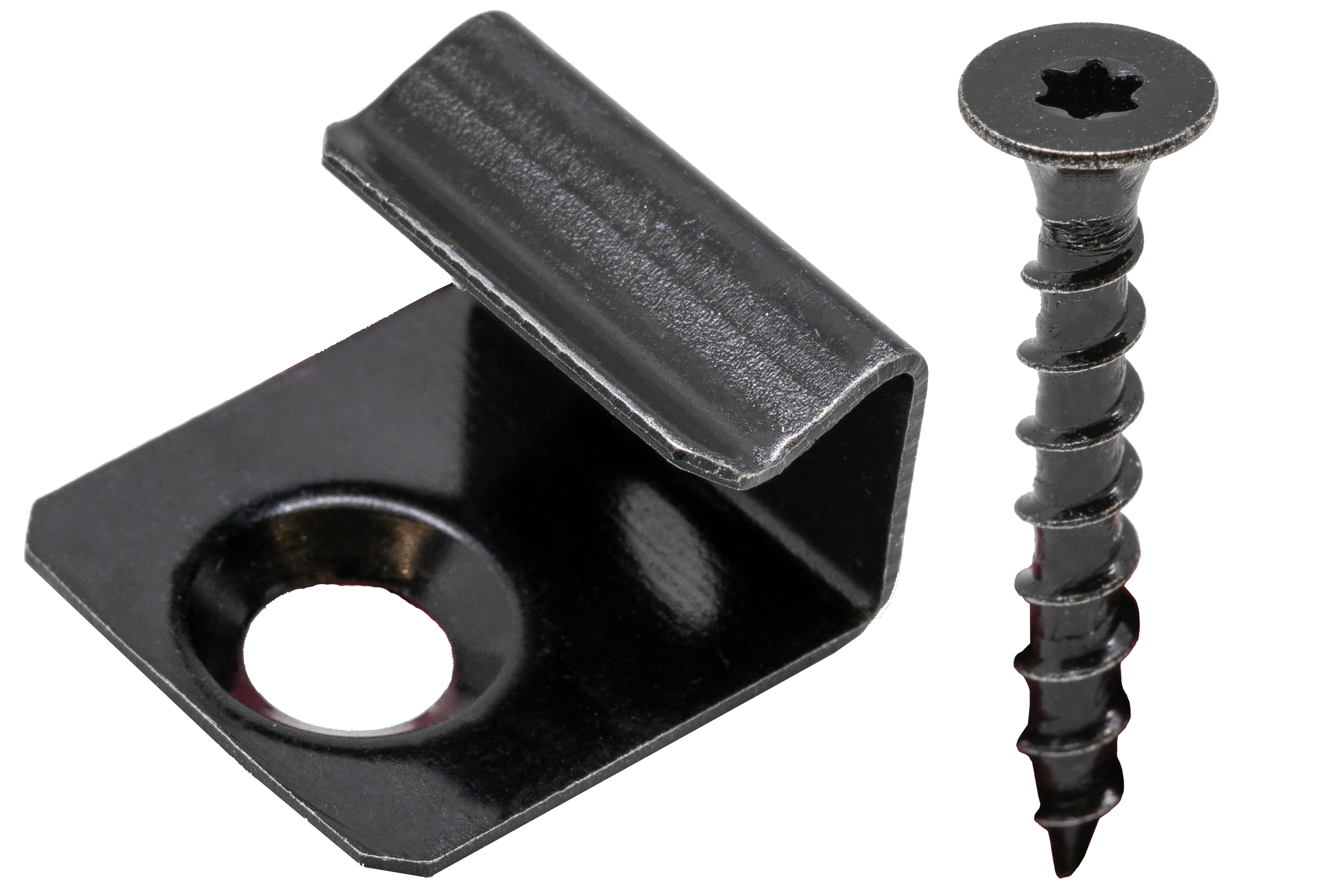

Avoid face fastening your first grooved board by securing it with CAMO® Starter Clips. Each package of Starter Clips comes with 25 clips and 25 fasteners made of 304 Stainless Steel for superior corrosion resistance.
THESE STRONG CLIPS ARE EASY TO INSTALL:

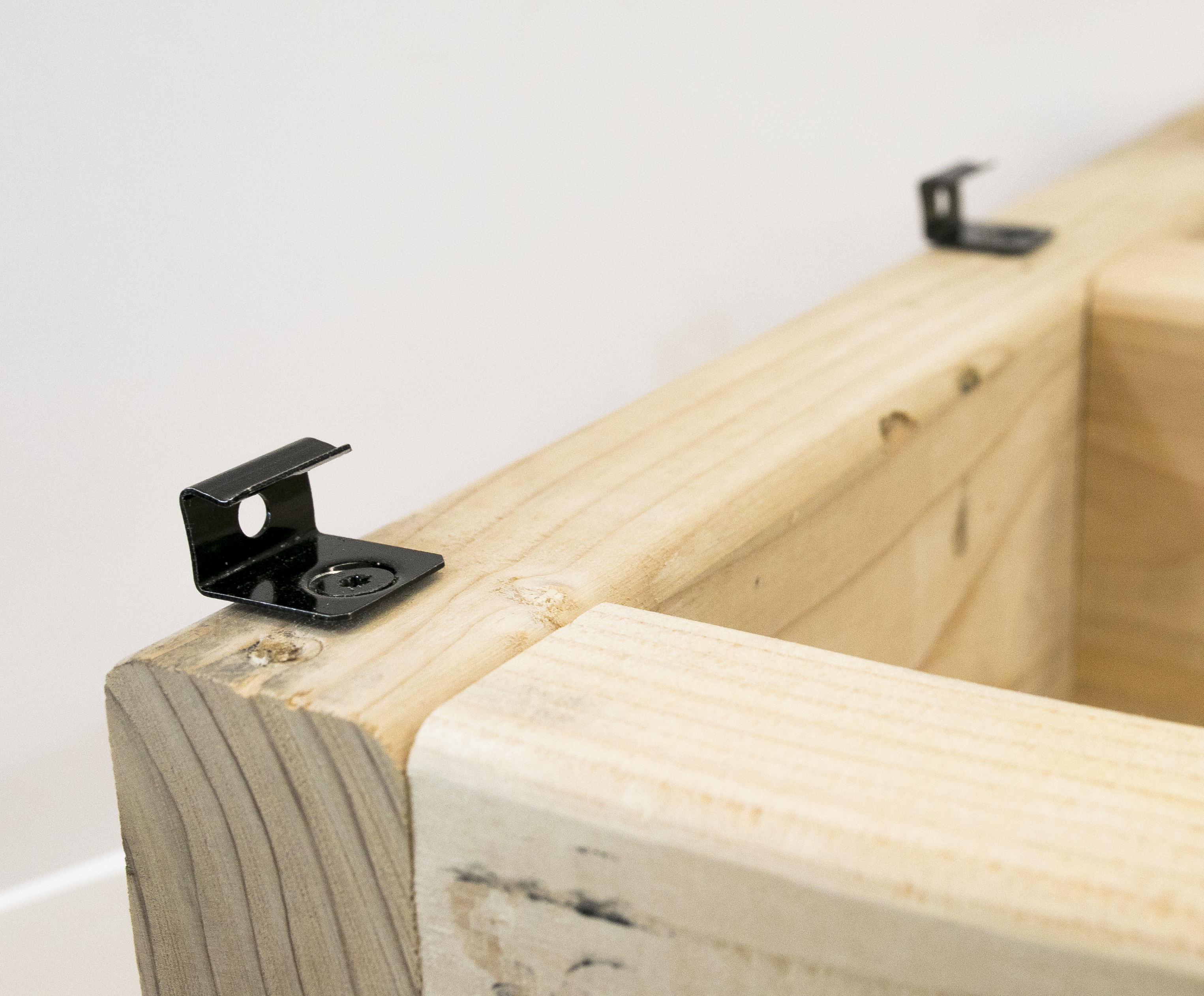

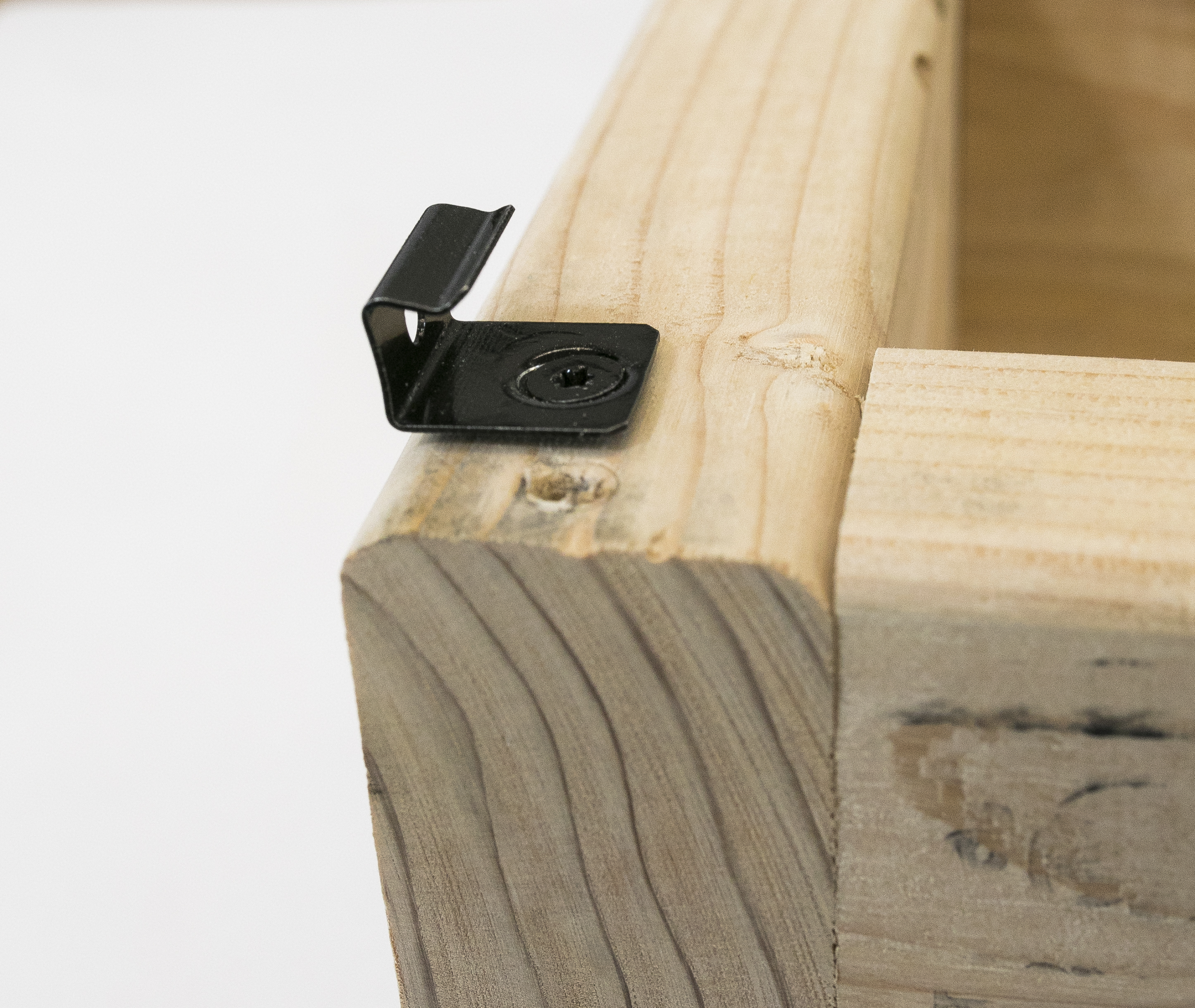

Line up the back edge of the clip with the outside of the joist and center it with the cross-joist. Fasten the clip.
Repeat clip installation at each cross-joist location—don't skip any joists.

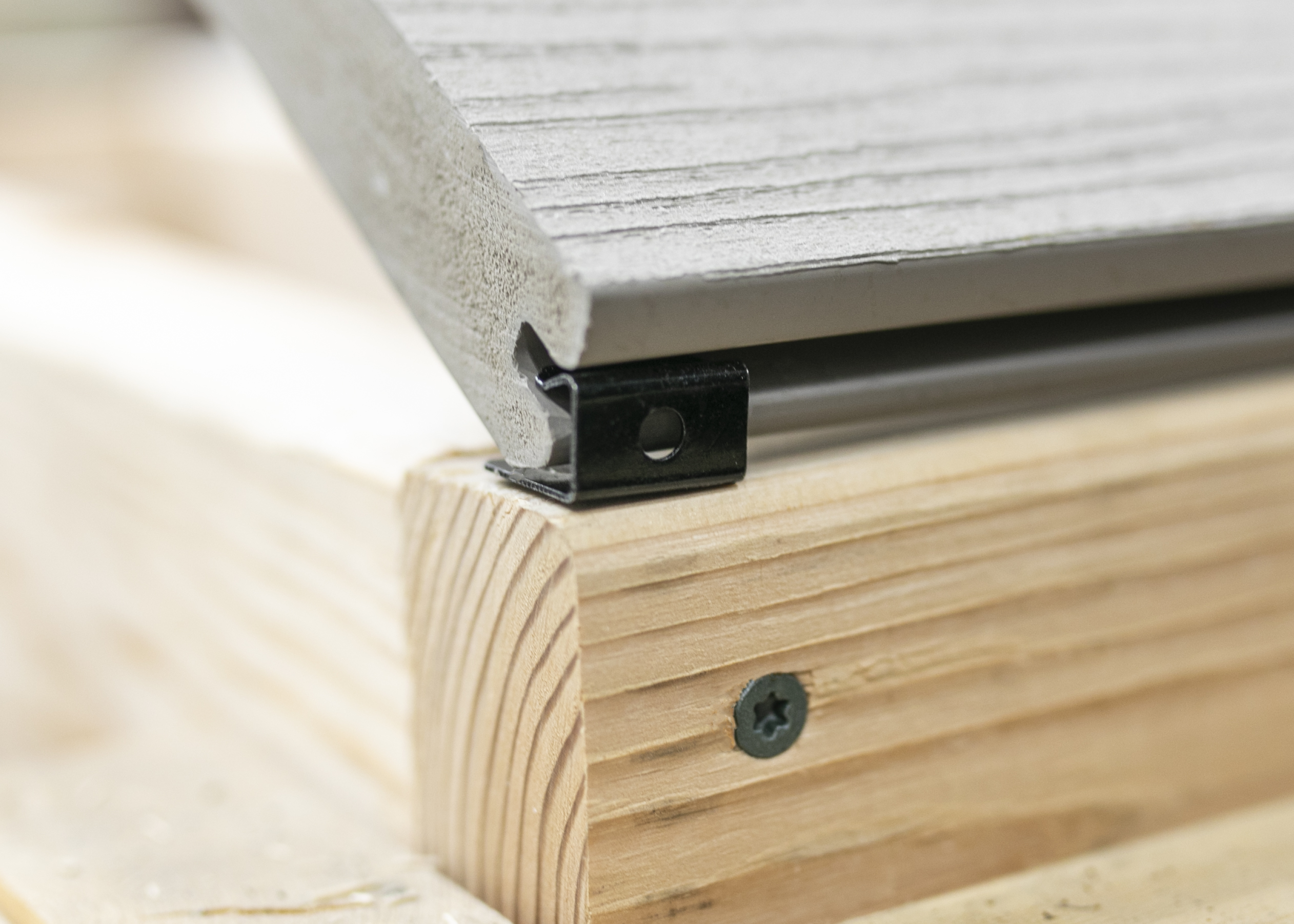

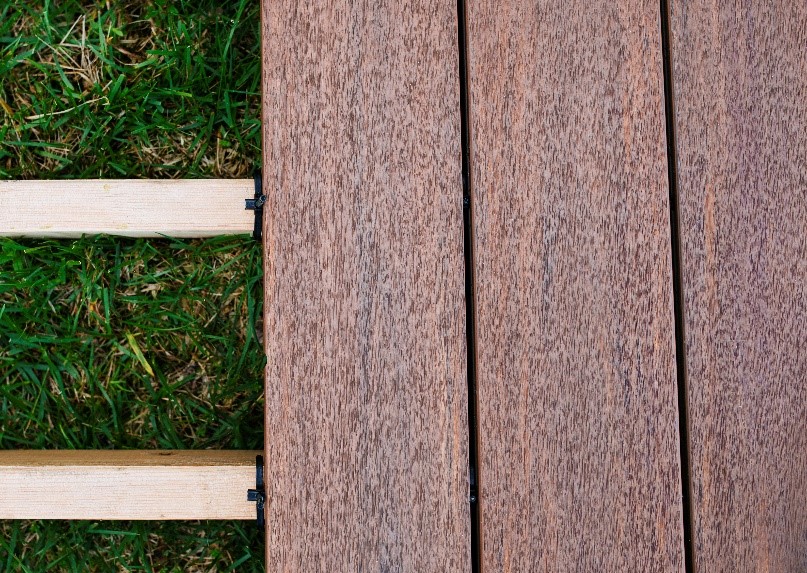

Once all the Starter Clips are installed, tilt your first board up slightly and push the board into the installed clips. That's it!
These clips can also be used to secure your end board or you can use them as an L-bracket.
For further peace of mind, EdgeClip and EdgeXClip are warranted for use in leading grooved wood, capped composite, and PVC decking products including Trex®, TimberTech®, AZEK®, Fiberon, Deckorators®, Veranda®, TROPICS, ChoiceDek and similar products. CAMO's limited warranty is comprehensive. If you install your deck boards following the manufacturer's installation instructions and the EdgeClip or EdgeXClip damages the deck board, we will replace the deck board. Click here for details.
